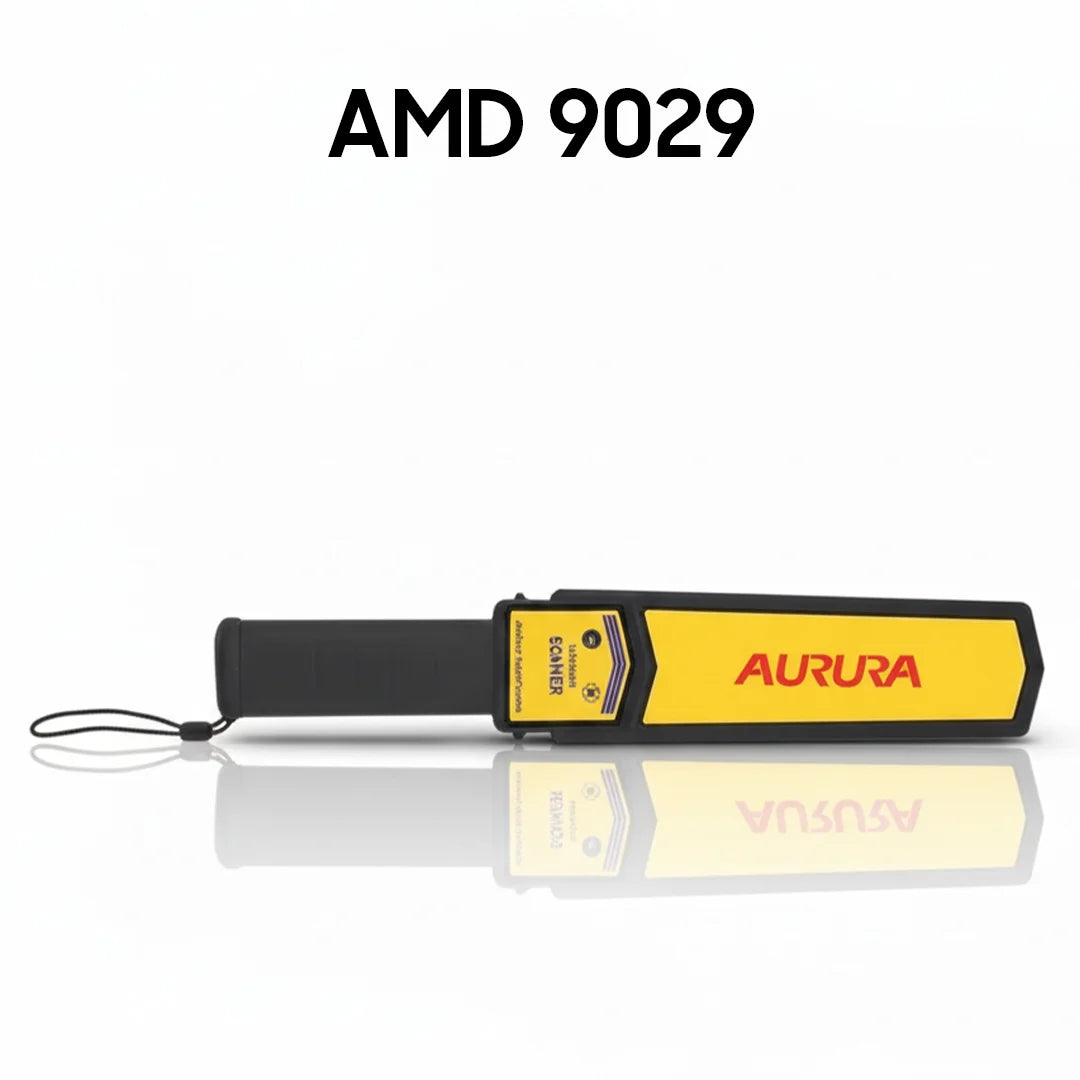

Metal Detector AMD 9029

Rs.10,500.00

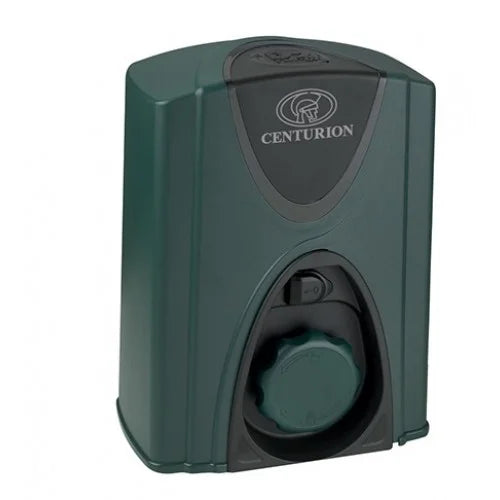

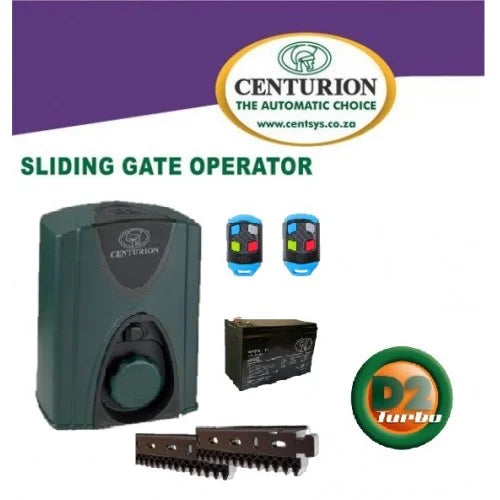

D2 TURBO DOMESTIC SLIDING GATE AUTOMATION MOTOR

D2 TURBO DOMESTIC SLIDING GATE AUTOMATION MOTOR

Rs.175,000.00

MAIN FEATURES: Turbo speed for greater security and convenience. Very easy to install and set up, saving you time and money. Reliable battery backup. Dedicated Solar Mode – allows you to disable the Mains Fail buzzer when using solar power. Onboard multichannel CENTURION receiver. Multiple Modes of Operation. Adaptive Collision...

Special Offer

In Stock
Free delivery available*
Sale 30% Off Use Code: Deal30

sold in last Hour

HURRY! ONLY LEFT IN STOCK

Description

MAIN FEATURES:

Turbo speed for greater security and convenience.
Very easy to install and set up, saving you time and money.
Reliable battery backup.
Dedicated Solar Mode – allows you to disable the Mains Fail buzzer when using solar power.
Onboard multichannel CENTURION receiver.
Multiple Modes of Operation.
Adaptive Collision Sensing.
Modular components clip together for easy maintenance.
Lockable, easy Manual Override.
Now with robust steel pinion – can be easily retro-fitted and ensures reliable operation.

D2 TURBO TECHNICAL DATA:

	DESCRIPTION
Technical Data	D2 Turbo
Input voltage 1	90V– 240V AC ±10%, 50Hz
Motor voltage	12V DC
Motor power supply 4	Battery-driven (standard capacity - 12V 5Ah)
Current consumption (mains)	Intergral with controller 1A @ 13.7V +/- 1%
Current consumption (motor at rated load)	8/12A
Current consumption (quiescent load)	95mA
Operator push force
Starting	18kgf
Rated	8kgf
Gate mass – maximum	250kg
Gate length - maximum	20m
Gate speed - m/min 6	22 - 26m/min
Gate speed - mm/sec	367 - 433mm/sec
Drive Pinion	17T Module 4
Maximum daily cycle	10 cycles/day
Design life	30 000 cycles
Operations in standby with standard battery 4, 5
Half day	60 cycles
Full day	40 cycles
Collision sensing	Electronic
Operating temperature	-15°C to +50°C
Degree of protection	IP54
Controller incorporated	D2 Controller_H
Onboard receiver type	NOVA code-hopping onboard, multichannel
Receiver frequency	433.92MHz
Receiver code storage capacity	32 transmitter buttons
Mass of unit packed	5kg
Packaging dimensions	Length: 255mm x Width: 188mm x Height: 333mm
