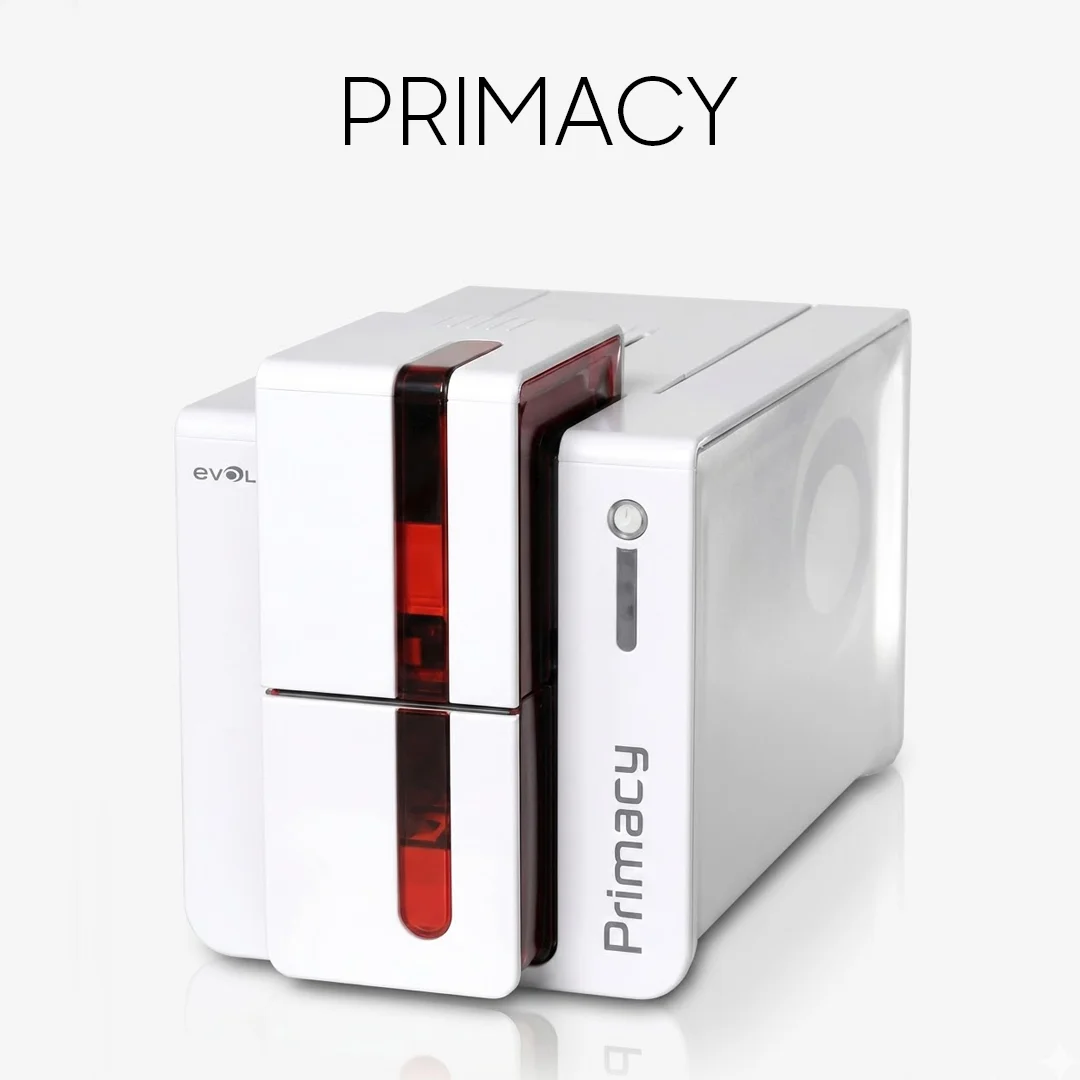

Description

Features:

• Dual-sided  printing module, edge to edge printing
• Color dye sublimation , monochrome thermal transfer
• 300 dpi  print head (11.8 dots/mm)
• 16MB  Memory (RAM)

Printing Performances:

• Dual-sided  :
• Color (YMCKO) : 190 – 225 cards /hour1
• Monochrome : 600 – 850 cards /hour
• Dual side  (YMCKO-K) : 140 cards /hour

Card Management and Specifications

• Feeder capacity: 100 cards (0.76 mm – 30 mil)
• Output hopper capacity: 100 cards (0.76 mm – 30 mil)
• Reject tray: 30 cards (0.76 mm – 30 mil)
• Card thickness: 0.25 to 1.25 mm (10 to 50 mil), gauge adjustment (0.25mm / 10 mil cards  for monochrome printing only)
• Types of cards: Types of cards : All PVC, Composite PVC cards, PET, RPET, ABS1  and special varnished1  cards
• Card format  ISO CR80 – ISO 7810 (53.98mm x 85.60 mm)

Evolis High Trust® ribbons

To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons.

• Automatic identification and setting
• Delivered in a drop-in cassette for easy handling
• Ribbon saver for monochrome printing
• Ribbons
• Ribbon capacity
• YMCKO: 300 prints / roll
• YMCKO-K: 200 prints / roll
• ½ YMCKO: 400 prints / roll
• KO: 600 prints / roll
• Monochrome ribbon: 1000 prints / roll(1)
• Hologram varnish: 400 prints / roll

Interfaces

• USB 1.1 (supports 2.0)
• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)
• Optional 802.11b/g wireless connection2
• Display
• Printer LEDs
• Graphical notifications3   from the printer: Empty input hopper alert, cleaning alerts, empty/low level ribbon alert

Software

• Delivered with Evolis Premium Suite® for Windows:
• Printer driver
• Evolis Print Center for printer management and settings
• Printer Manager for bi-directional graphical notification4
• Compatible with Windows™: XP SP3 32/64 ; Vista 32/64, W7 32/64, W8 32/64
• Delivered with eMedia CS Card Designer, Standard Edition, unlimited version (supports WindowsTM 8, 7 and Vista)
• Delivered with a driver for Mac OS X (from 10.5 onwards)
• Other OS: Linux upon request

Size and weight

• Size: Height 247mm (9.72″”) x length 205mm (8.07″”) x width 381 mm (14.99″”)
• Height 247mm (9.72″”) x length 205mm (8.07″”) x width 481 mm (18.93″”) (With reject tray)
• Weight:  4.02 kg (8.86 lbs): Dimensions and weight of the machine when packed :
• Size (H x l x W) : 485 x 300 x 390 mm
• Weight : 5.290kg

Sound (Evaluated according to the ISO 7779 standard)

Sound pressure level,  LpAm, measure at the operator position (colour mode YMCKO)  :

• When operating: 48dB (A)
• In sleep mode: background noise level

Safety

• Slot for Kensington® security lock
• Data encryption for magnetic encoding

Packaging content

• Printer
• CD-ROM with printer drivers, user manuals, and eMedia CS
• Cleaning kit
• USB cable
• Reject tray
• Power supply and cord

Options & Accessories

• Colors available : Fire Red & Brilliant Blue
• Upgrade kit for dual-sided printing
• Encoding options can be combined, factory ordered or upgraded on-site with additional modules:  Magnetic stripe encoder, smart contact station, smart encoding unit, contactless encoding unit
• USB Encoding  over IP through additional USB Net Server module, upon request
• Locking system to prevent access to the printer and consumables (cards and ribbons)

Environmental features, certifications and statement of compliance

• Standby mode & reduced energy consumption
• CE, FCC, IEC, VCCI, CCC, KC
• ErP 2009/125/CE, ENERGY STAR, ROHS

Power

• Power supply : 100-240 Volts AC, 50-60 Hz, 1,8A
• Printer : 24 Volts DC, 3 A

Environment

• Min/max operating temperature: 15° / 30 °C (59° / 86 °F)
• Humidity: 20% to 65% non-condensing
• Min/max storage temperature: -5° / +70 °C (23° / 158 °F)
• Storage humidity: 20% to 70% non-condensing
• Operating ventilation: open air

Resident fonts

• Arial 100, Arial bold 100
• Barcode: Code 39, Code 128, EAN 13, 2/5 interleaved
