INTELLIGENT UPS

Save 100% Life of Your Home Appliances & Office Equipment Using Pure Sine Wave Technology

Description

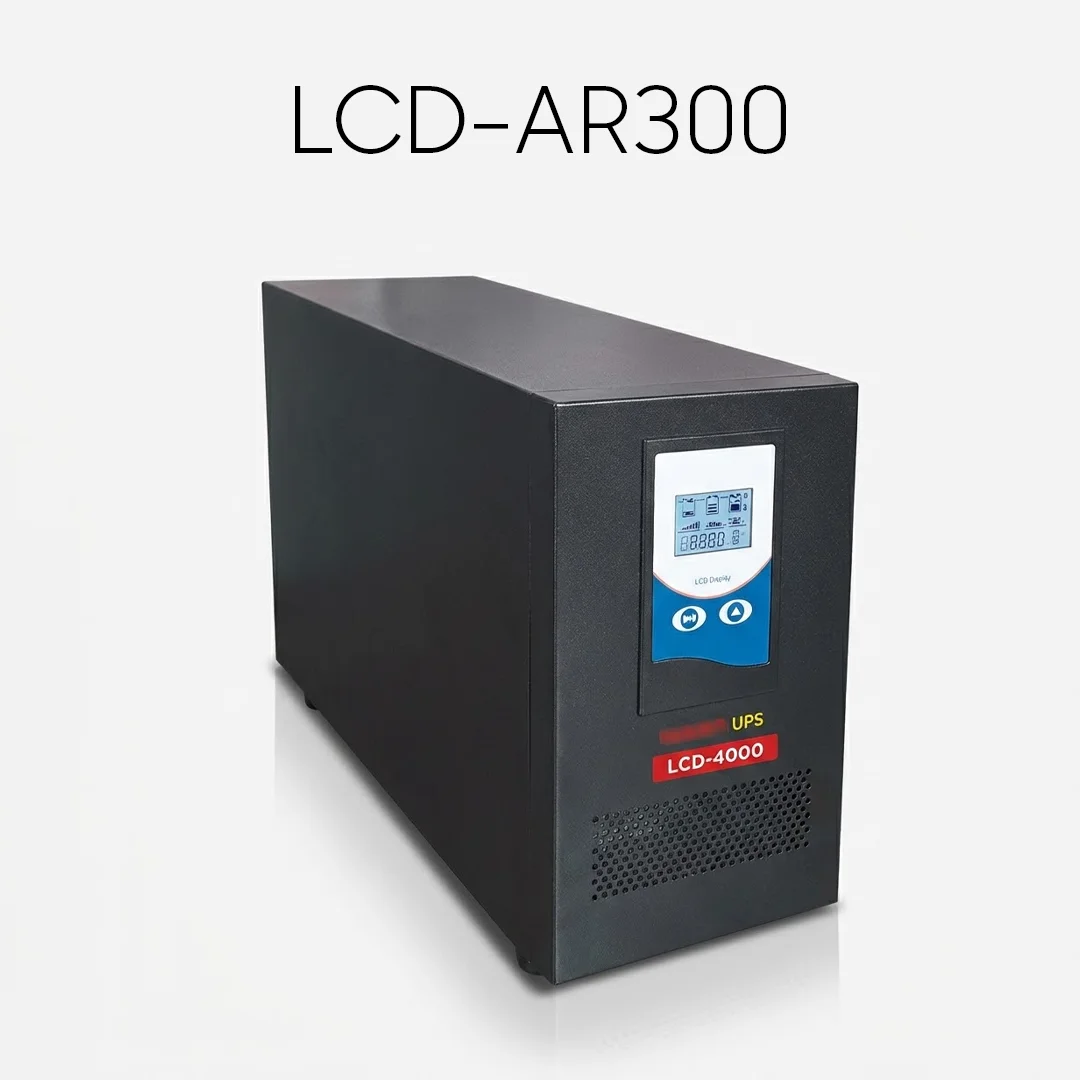

LCD-AR series  features unsurpassed reliability for regions or countries  with chronic  voltage problems. Designed to work and protect PC equipment in extremely hostile power environment  where  other  UPS simply will not operate.

Features:

• Accurate Pure sine wave output: strong capacity of different load.
• Option to use external battery up to 200AH for Long Backup.
• Smart LCD Display show complete information about Power, Load and Battery values.
• Perfect protection of overload, short circuit, over-voltage, low-voltage and overheating etc.
• UPS Start automatically when main power recovers.
• Transfer Time Including detecting time: 5ms
• UPS Automatically shut off if overload exceeds 120% of normal value for 30 seconds and 150% for 3 seconds.
• UPS Output is cut off immediately or input    circuit breaker protection on short circuit.

Specifications:

• Backup Time: 2 Hrs continuous backup 1 time with 200 Ah* 4 full charge batteries.
• Capacity: 6KVA (3500W)
• DC Voltage: 48VDC
• Over Load: Audible Alarm
• Voltage Rang: 220/230.240VAC
• Weight: 35 Kg
