| Technical Data |

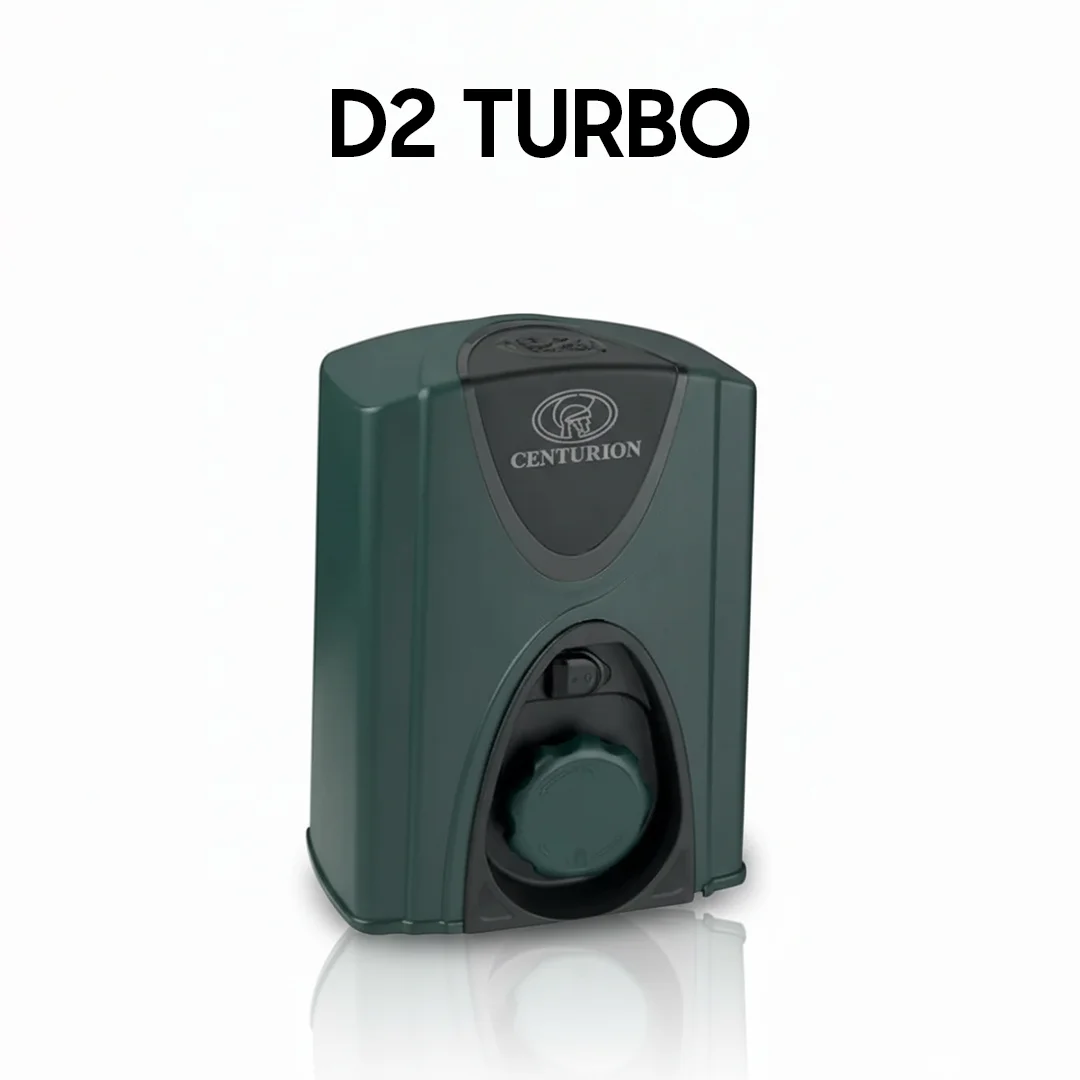

D2 Turbo |
|
| Input voltage 1 |
90V– 240V AC ±10%, 50Hz |
|
| Motor voltage |
12V DC |
|
| Motor power supply 4 |
Battery-driven (standard capacity – 12V 5Ah) |
|
| Current consumption (mains) |
Intergral with controller 1A @ 13.7V +/- 1% |
|
| Current consumption (motor at rated load) |
8/12A |
|
| Current consumption (quiescent load) |
95mA |
|
| Operator push force |
|
|
| Starting |
18kgf |
|
| Rated |
8kgf |
|
| Gate mass – maximum |
250kg |
|
| Gate length – maximum |
20m |
|
| Gate speed – m/min 6 |
22 – 26m/min |
|
| Gate speed – mm/sec |
367 – 433mm/sec |
|
| Drive Pinion |
17T Module 4 |
|
| Maximum daily cycle |
10 cycles/day |
|
| Design life |
30 000 cycles |
|
| Operations in standby with standard battery 4, 5 |
|
|
| Half day |
60 cycles |
|
| Full day |
40 cycles |
|
| Collision sensing |
Electronic |
|
| Operating temperature |
-15°C to +50°C |
|
| Degree of protection |
IP54 |
|

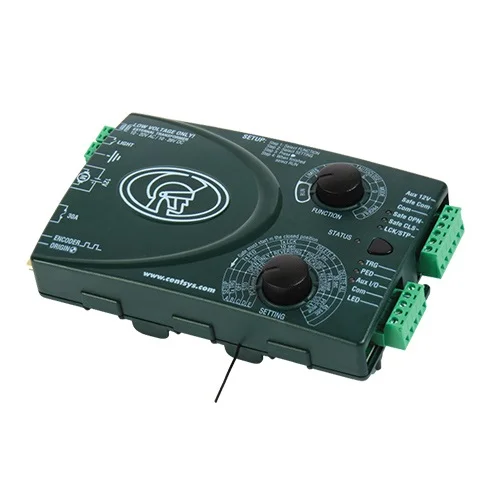

| Controller incorporated |
D2 Controller_H |
|
| Onboard receiver type |
NOVA code-hopping onboard, multichannel |
|
| Receiver frequency |
433.92MHz |
|
| Receiver code storage capacity |
32 transmitter buttons |
|
| Mass of unit packed |
5kg |
|
| Packaging dimensions |
Length: 255mm x Width: 188mm x Height: 333mm |
|
